Semi-automatic Hydraulic Butt Fusion Machine
Application & Features
1. Combination design of the electric and hydraulic unit, easy installation；
2. Use explosion-proof sockets to make operation safer；
3. More robust and durable with 5 cm thickness aluminum clamps；
4. Independent temperature control of the heating plate and PTFE surface coating；
5. Cutting is more stable by use of gear transmission；
6. Independent dual channel timer can record the two periods of heat and cooling, timing alarm over to convenient the user；
7. Big dial, high-precision shock pressure, low temperature resistance, table read mathematical clearly.
| Model | 450 | |
|---|---|---|
| Welding Range（mm） | 280,315,355,400,450 | |
| Heating Plate Power | 50kw/380v | |
| Milling Cutter Power | 1.5kw/380v | |
| Hydraulic Unit Power | 1.1kw/380v | |
| Net Weight | 327kg | |
| Gross Weight | 380kg | |
| Package Size（mm） | 128×90×99 74×54×120 69×51×49 | |
| Volume | 1.64/1.8m³ | |

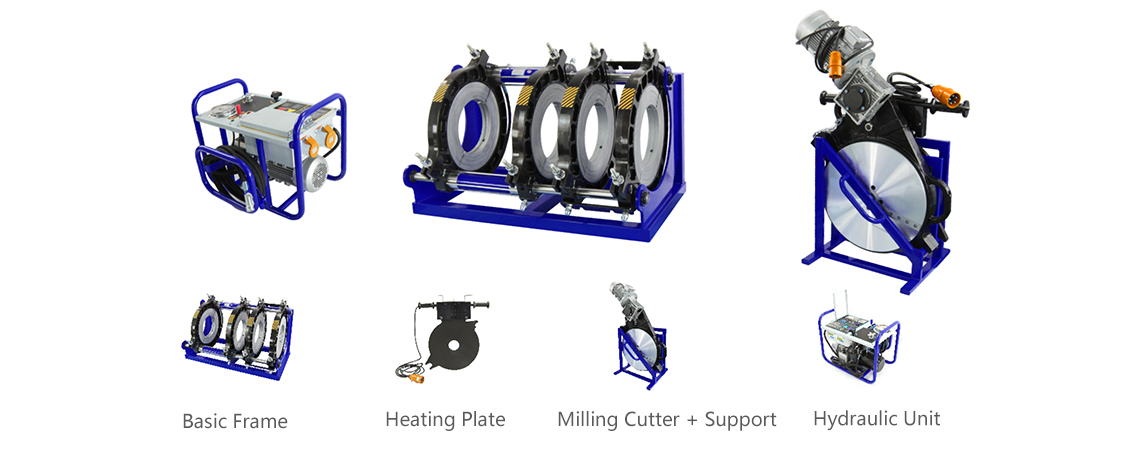

| Size（cm）/Weight（kg） | Basic Frame | 120×74×79 180kg |
| Heating Plate | 71×10×70 16kg | |
| Milling Cutter | 63×16×98 59kg | |
| Support | 50×50×60 13kg | |
| Hydraulic Unit | 58×46×45 49kg | |
