THREE EYE PLATE
THREE EYE PLATE

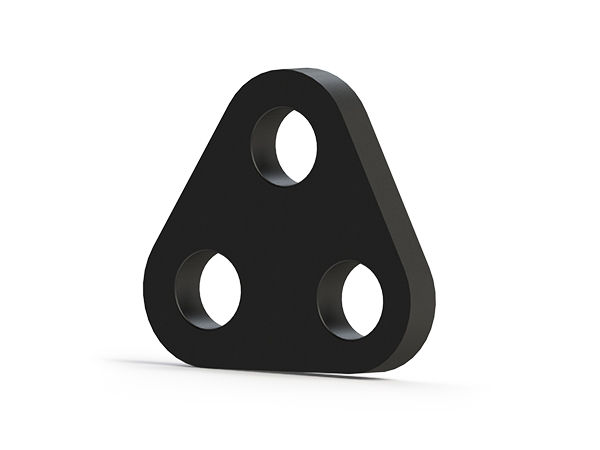

The three-eye plate is used for the connection between anchor chains and can connect three anchor chains at the same time. The body is integrally forged with special materials which improves the tensile strength.It is widely used for the connection and matching of aquaculture moorings.
Previous
Next

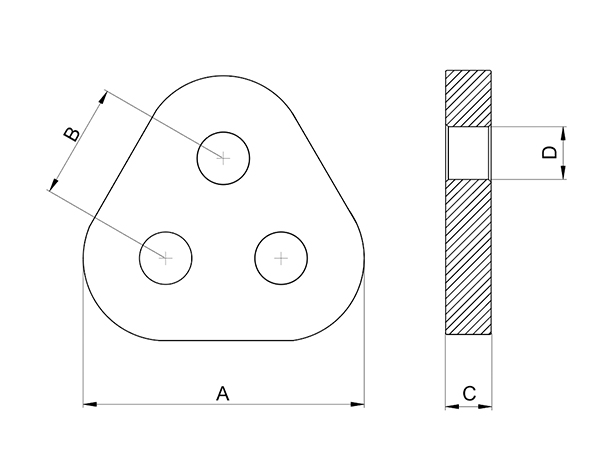

| Chain Size(mm) | A(mm) | B(mm) | C(mm) | D(mm) | Proof Load(t) | Breaking Load | Weight(kg) |
|---|---|---|---|---|---|---|---|
| 38-46 | 320 | 168 | 50 | 76 | 81.2 | 106 | 13 |
| 48-56 | 360 | 184 | 60 | 88 | 127 | 181 | 25 |
| 58-38 | 430 | 225 | 80 | 102 | 190 | 287 | 50 |
| 70-73 | 506 | 266 | 90 | 120 | 270 | 404 | 81 |
| 76-80 | 550 | 290 | 90 | 130 | 313 | 472 |
