G2130 shackle
G2130 shackle

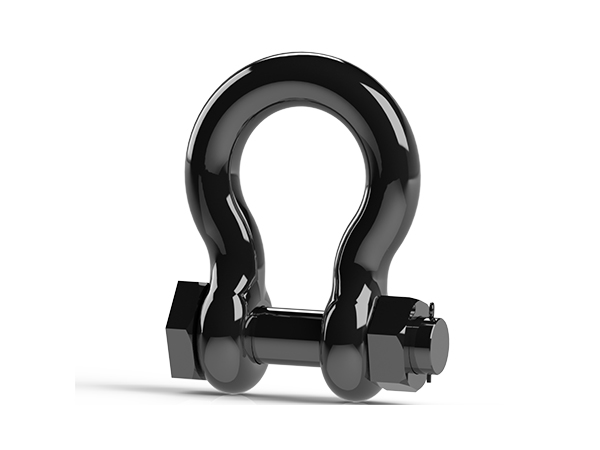

G2130 shackle is made of high manganese steel forged as a whole and the surface galvanized treatment can improve the corrosion life of seawater. The end of the pin is equipped with a safety pin to increase the overall safety which is widely used for breeding mooring line connection and matching. ...
Previous
Next

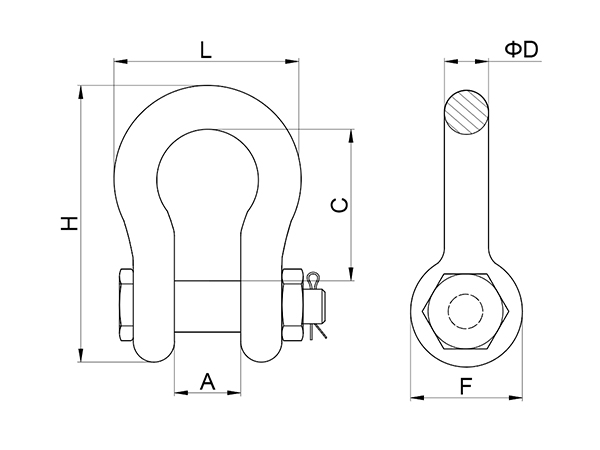

| Nominal Size | Dimensions（mm） | Working Load Limit | Weight | |||||
|---|---|---|---|---|---|---|---|---|
| （in.） | A | C | D | F | H | L | t | kg |
| 3/16 | 9.65 | 22.4 | 4.81 | 14.2 | 27.3 | 24.9 | 1/3 | 0.03 |
| 1/4 | 11.9 | 28.7 | 6.35 | 15.5 | 46.7 | 32.5 | 1/2 | 0.05 |
| 5/16 | 13.5 | 31 | 7.85 | 19.1 | 53 | 37.3 | 3/4 | 0.1 |
| 3/8 | 16.8 | 36.6 | 9.65 | 23.1 | 63 | 45.2 | 1 | 0.15 |
| 7/16 | 19.1 | 42.9 | 11.2 | 26.9 | 74 | 51.5 | 1-1/2 | 0.22 |
| 1/2 | 20.6 | 47.8 | 12.7 | 30.2 | 83 | 58.5 | 2 | 0.36 |
| 5/8 | 26.9 | 60.5 | 16 | 38.1 | 106 | 74.5 | 3-1/4 | 0.76 |
| 3/4 | 31.8 | 71.5 | 19.1 | 46 | 126 | 89 | 4-3/4 | 1.23 |
| 7/8 | 36.6 | 84 | 22.4 | 53 | 148 | 102 | 6-1/2 | 1.79 |
| 1 | 42.9 | 95.5 | 25.4 | 60.5 | 167 | 119 | 8-1/2 | 2.57 |
| 1-1/8 | 46 | 108 | 28.7 | 68.5 | 190 | 131 | 9-1/2 | 3.57 |
| 1-1/4 | 51.5 | 119 | 31.8 | 76 | 210 | 146 | 12 | 5.31 |
| 1-3/8 | 57 | 133 | 35.1 | 84 | 233 | 162 | 13-1/2 | 7.18 |
| 1-1/2 | 60.5 | 146 | 38.1 | 92 | 254 | 175 | 17 | 9.43 |
| 1-3/4 | 73 | 178 | 44.5 | 106 | 313 | 225 | 25 | 15.4 |
| 2 | 82.5 | 197 | 51 | 122 | 348 | 253 | 35 | 23.7 |
| 2-1/2 | 105 | 267 | 66.5 | 145 | 453 | 327 | 55 | 44.6 |
| 3 | 127 | 330 | 76 | 165 | 546 | 365 | 85 | 70 |
| 3-1/2 | 133 | 372 | 92 | 203 | 629 | 419 | 120 | 120 |
| 4 | 140 | 368 | 104 | 229 | 653 | 468 | 150 | 153 |
