LTM SHACKLE
LTM SHACKLE

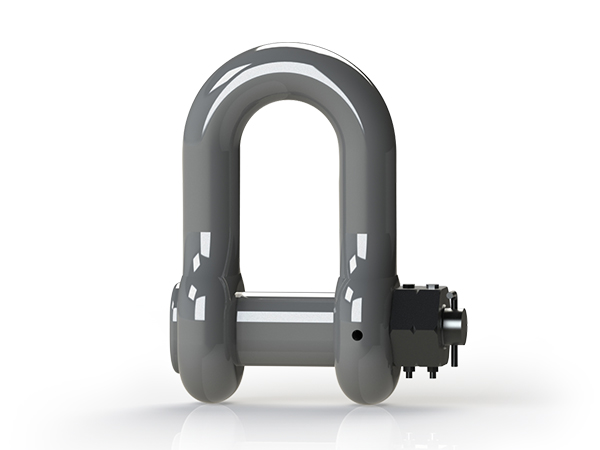

Aquaculture LTM shackles are specially used for the connection between chains. The raw material of special steel increases the resistance to seawater corrosion and improves the tensile strength. The added double nuts and bolt design at the end of the shackle horizontal pin facilitate the connection, assembly and disassembly; and increase the security of the connection at the same time to avoid the horizontal pin falling off. It's suitable for permanent aquaculture mooring chain connection.
Previous
Next

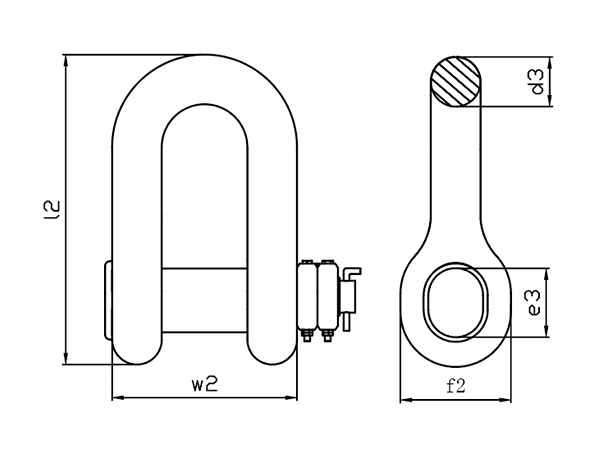

Nominal Sized(mm) | d3 | l2 | w3 | e3 | f2 | Weight(kg) |
---|---|---|---|---|---|---|
16 | 22 | 139 | 83 | 29 | 50 | 1.6 |
17.5 | 25 | 152 | 91 | 32 | 54 | 2 |
19 | 27 | 165 | 99 | 34 | 59 | 2.6 |
20.5 | 29 | 178 | 107 | 37 | 64 | 3.2 |
22 | 31 | 191 | 114 | 40 | 68 | 4.1 |
24 | 34 | 209 | 125 | 43 | 74 | 5.2 |
26 | 36 | 226 | 135 | 46 | 81 | 6.7 |
28 | 39 | 244 | 146 | 50 | 87 | 8.2 |
30 | 42 | 261 | 156 | 54 | 93 | 10 |
32 | 45 | 278 | 166 | 58 | 99 | 12 |
34 | 48 | 296 | 177 | 61 | 105 | 14.5 |
36 | 50 | 313 | 187 | 65 | 112 | 17 |
38 | 53 | 331 | 198 | 69 | 118 | 20 |
40 | 56 | 348 | 208 | 72 | 124 | 23 |
42 | 59 | 365 | 218 | 76 | 130 | 26.6 |
44 | 62 | 385 | 229 | 79 | 136 | 30 |
46 | 64 | 400 | 239 | 83 | 143 | 35 |
48 | 67 | 418 | 250 | 86 | 149 | 38.8 |
50 | 70 | 435 | 260 | 90 | 155 | 47.5 |
52 | 73 | 452 | 270 | 93 | 161 | 53.4 |
54 | 76 | 470 | 281 | 97 | 167 | 56.5 |
56 | 78 | 487 | 291 | 101 | 174 | 66.2 |
58 | 81 | 505 | 302 | 104 | 180 | 73.5 |
60 | 84 | 522 | 312 | 108 | 186 | 81.4 |
62 | 87 | 539 | 322 | 112 | 192 | 90.6 |
64 | 92 | 557 | 333 | 115 | 198 | 101 |
66 | 92 | 574 | 343 | 119 | 205 | 105 |
68 | 95 | 592 | 354 | 122 | 211 | 108 |
70 | 98 | 609 | 364 | 126 | 217 | 132 |
73 | 102 | 635 | 380 | 131 | 226 | 145 |
76 | 106 | 661 | 395 | 137 | 236 | 153 |
