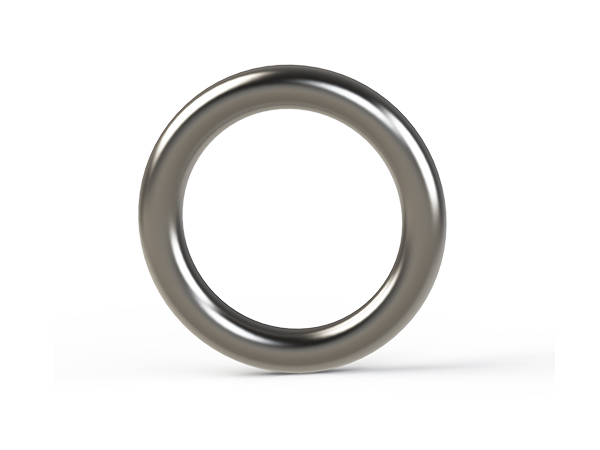

Round Ring
Round Ring
Aquaculture connecting round ring is used for the switch connection of anchor chain from single point to multi-point. It is integrally forged from special material which improves tensile strength and connects multiple anchor chains at the same time. It is an important equipment to realize safe mooring.
Previous
Next

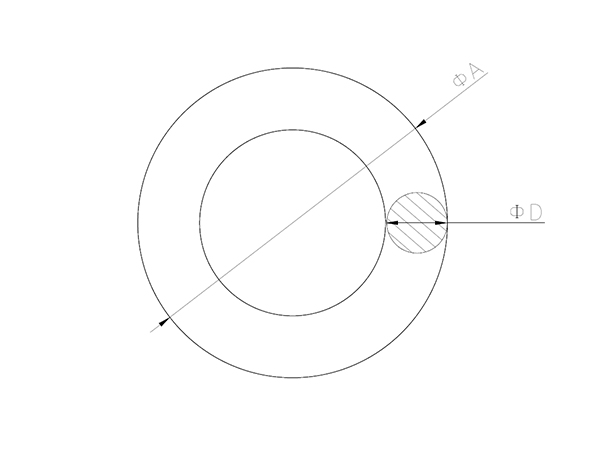

| Nominal Chain Size(mm) | Diameter（mm） | OuterDiameter(mm) | Weight(kg) | Minimum Break Load (t) | Proof Load (t) |
|---|---|---|---|---|---|
| 19 | 30 | 152 | 2.18 | 30.7 | 21.5 |
| 25 | 40 | 200 | 4.96 | 40 | 30 |
| 32 | 51 | 256 | 10.39 | 84.9 | 59.4 |
| 40 | 64 | 320 | 20.31 | 131 | 91.4 |
| 50 | 80 | 400 | 39.67 | 200 | 140 |
| 56 | 89.6 | 448 | 55.77 | 248 | 174 |
| 64 | 102 | 512 | 83.2 | 319 | 223 |
| 76 | 121 | 608 | 139.3 | 438 | 307 |
